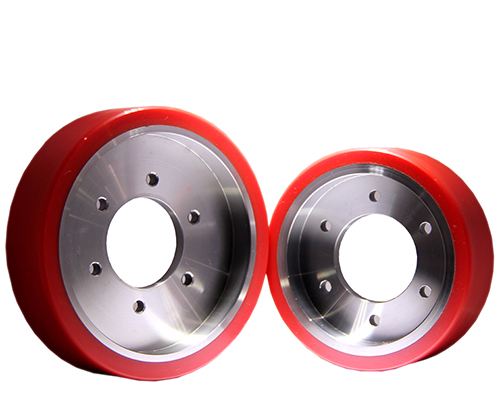

軸承包膠
詳細介紹

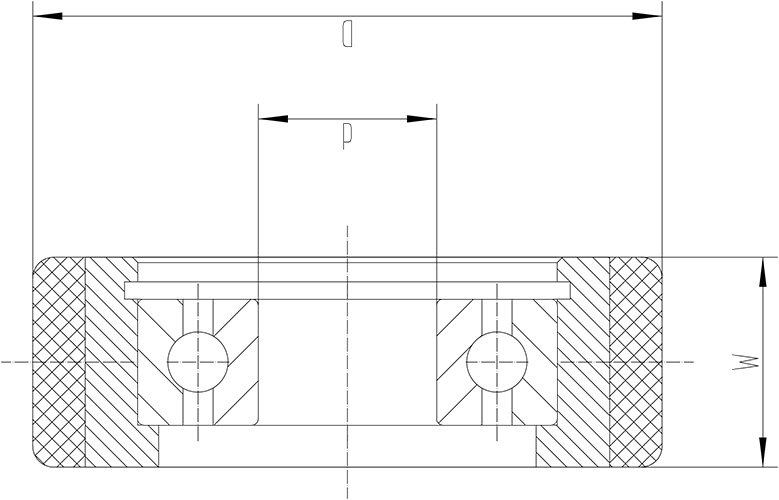

產品規格
| 物料編碼 | 型號 | 輪徑 (mm) | 輪寬 (mm) | 軸承型號 | 載重(kgs) |
| ZC50/12/6002 | 50 x 12 | 50 | 12 | 6002 | 40 |
| ZC50/15/6201 | 50 x 15 | 50 | 15 | 6201 | 50 |
| ZC50/20/6201 | 50 x 20 | 50 | 20 | 6201 | 70 |
| ZC60/20/6204 | 60 x 20 | 60 | 20 | 6204 | 80 |
| ZC60/25/6204 | 60 x 25 | 60 | 25 | 6204 | 100 |
| ZC70/20/6205 | 70 x 20 | 70 | 20 | 6205 | 100 |
| ZC70/25/6205 | 70 x 25 | 70 | 25 | 6205 | 120 |
| ZC70/30/6304 | 70 x 30 | 70 | 30 | 6304 | 140 |
| ZC75/20/6205 | 75 x 20 | 75 | 20 | 6205 | 100 |
| ZC75/25/6205 | 75 x 25 | 75 | 25 | 6205 | 130 |
| ZC75/30/6304 | 75 x 30 | 75 | 30 | 6304 | 150 |
| ZC80/20/6007 | 80 x 20 | 80 | 20 | 6007 | 110 |
| ZC80/25/6305 | 80 x 25 | 80 | 25 | 6305 | 140 |
| ZC80/30/6305 | 80 x 30 | 80 | 30 | 6305 | 170 |
